Spend a minute. Save the day.

Check compatibility, draw the schematic and share the plan before you leave for site.

Start designing for freeSee a real example

Free to start. No account needed.

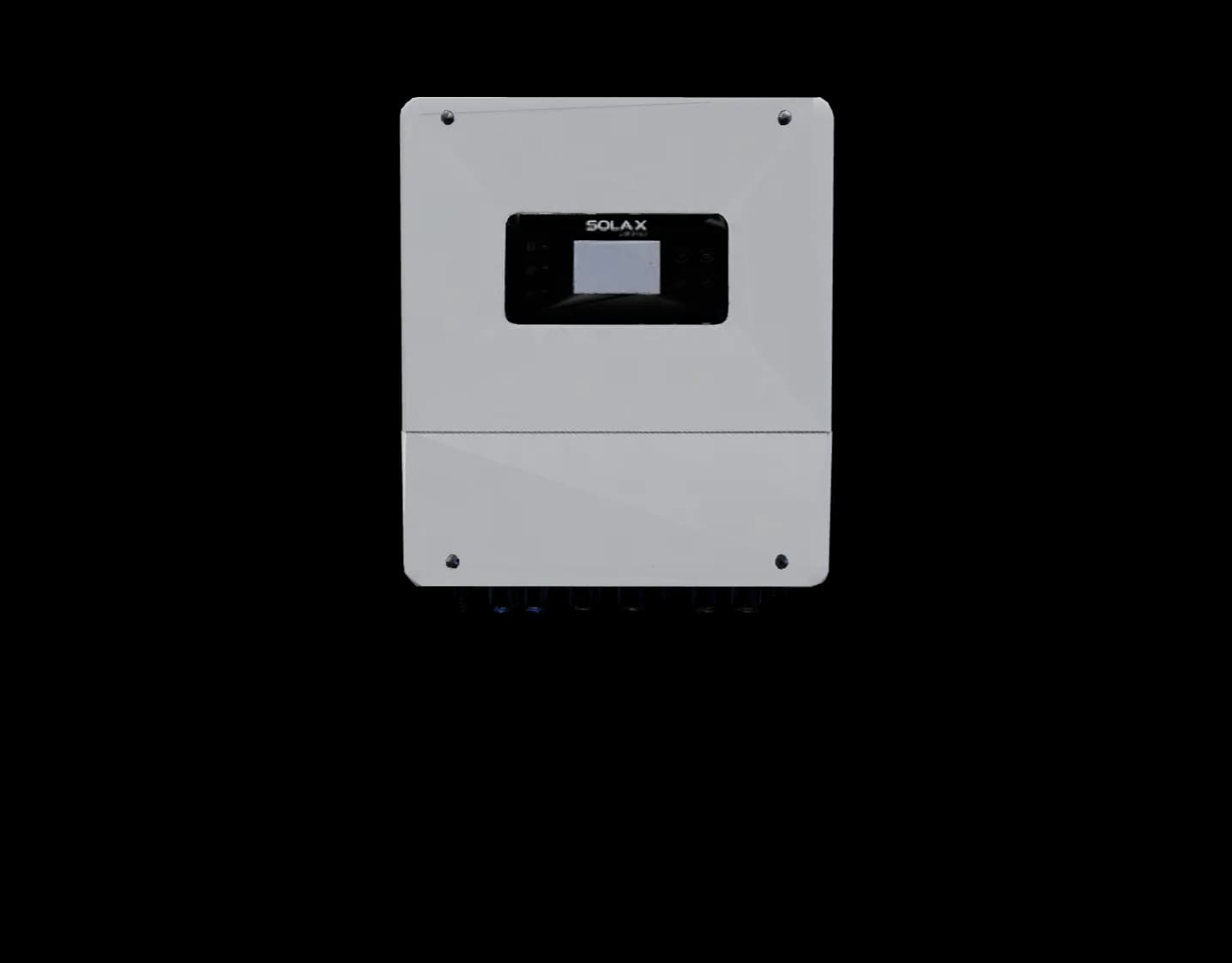

A 3D model of a SolaX X1-Hybrid G4 hybrid inverter.

The cost

Revisits add up.

Move the sliders to see what return visits could cost you in a year.

£10,080 per year

2 return visits a month × £420 × 12 months

Illustrative cost estimate based on your inputs, not measured industry data or a guaranteed saving. Not all return visits are preventable.

Check

Know it fits.

A clear verdict for each inverter and battery pair, and where it comes from.

Open this compatibility page

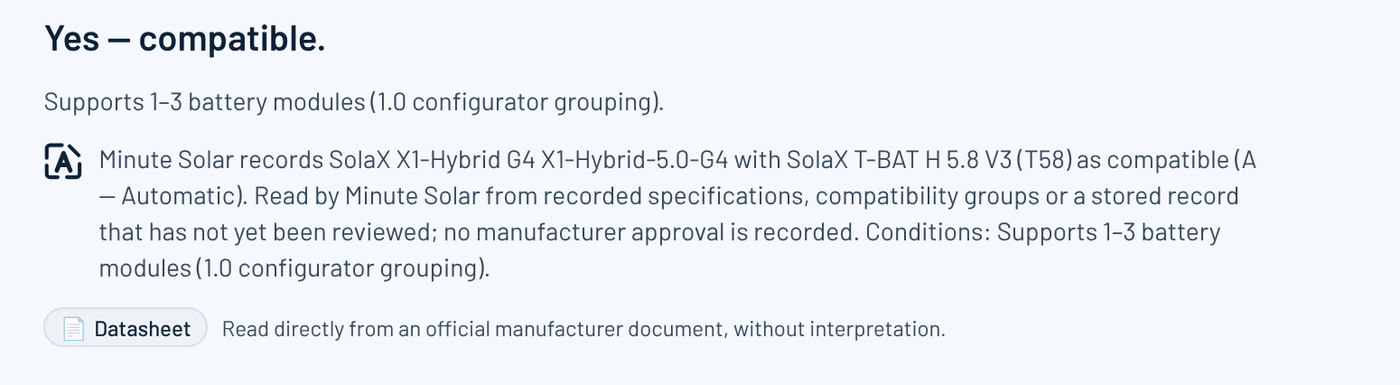

Open this compatibility page. A compatibility verdict from Minute Solar: "Yes — compatible." Supports 1–3 battery modules. The provenance line reads that Minute Solar records the SolaX X1-Hybrid-5.0-G4 with the SolaX T-BAT H 5.8 V3 (T58) as compatible (A — Automatic), read from recorded specifications, and that no manufacturer approval is recorded. A Datasheet source tag sits beneath.
The public verdict for the SolaX X1-Hybrid-5.0-G4 with the T-BAT H 5.8 V3, with its condition and where it comes from.

Draw

Catch it on screen, not on site.

The schematic flags problems early, like a CT lead that won't reach the meter.

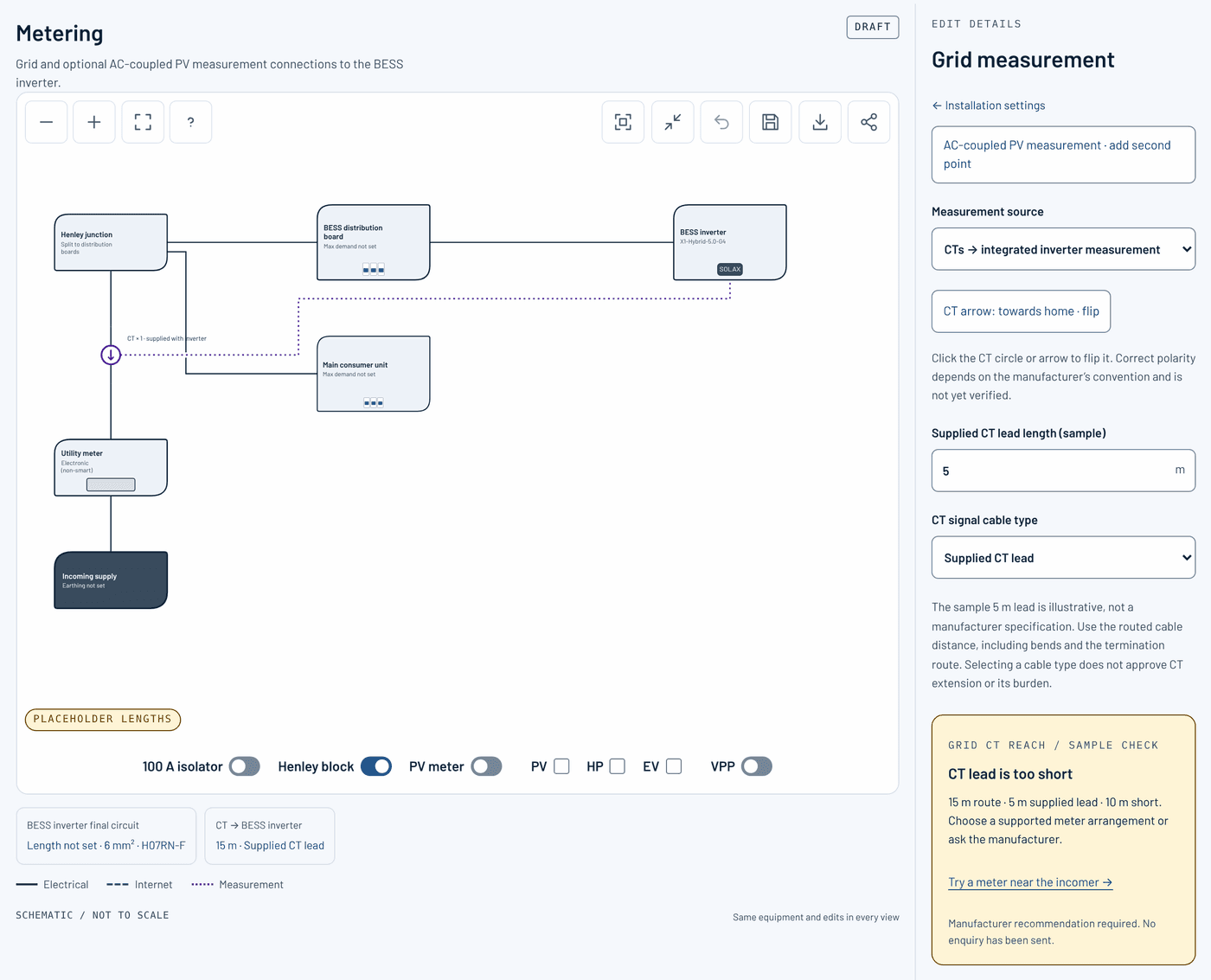

Open this schematic. The schematic builder's metering view for the same system. The edit panel shows a supplied CT lead length of 5 m (sample) and a warning card headed "Grid CT reach / sample check: CT lead is too short — 15 m route · 5 m supplied lead · 10 m short. Choose a supported meter arrangement or ask the manufacturer."
Example: a 15 m CT route against a 5 m sample lead. The 5 m is the builder's illustrative sample, not a manufacturer figure.

Share

Hand over a clear plan.

An A3 PDF with a QR code that opens the live design.

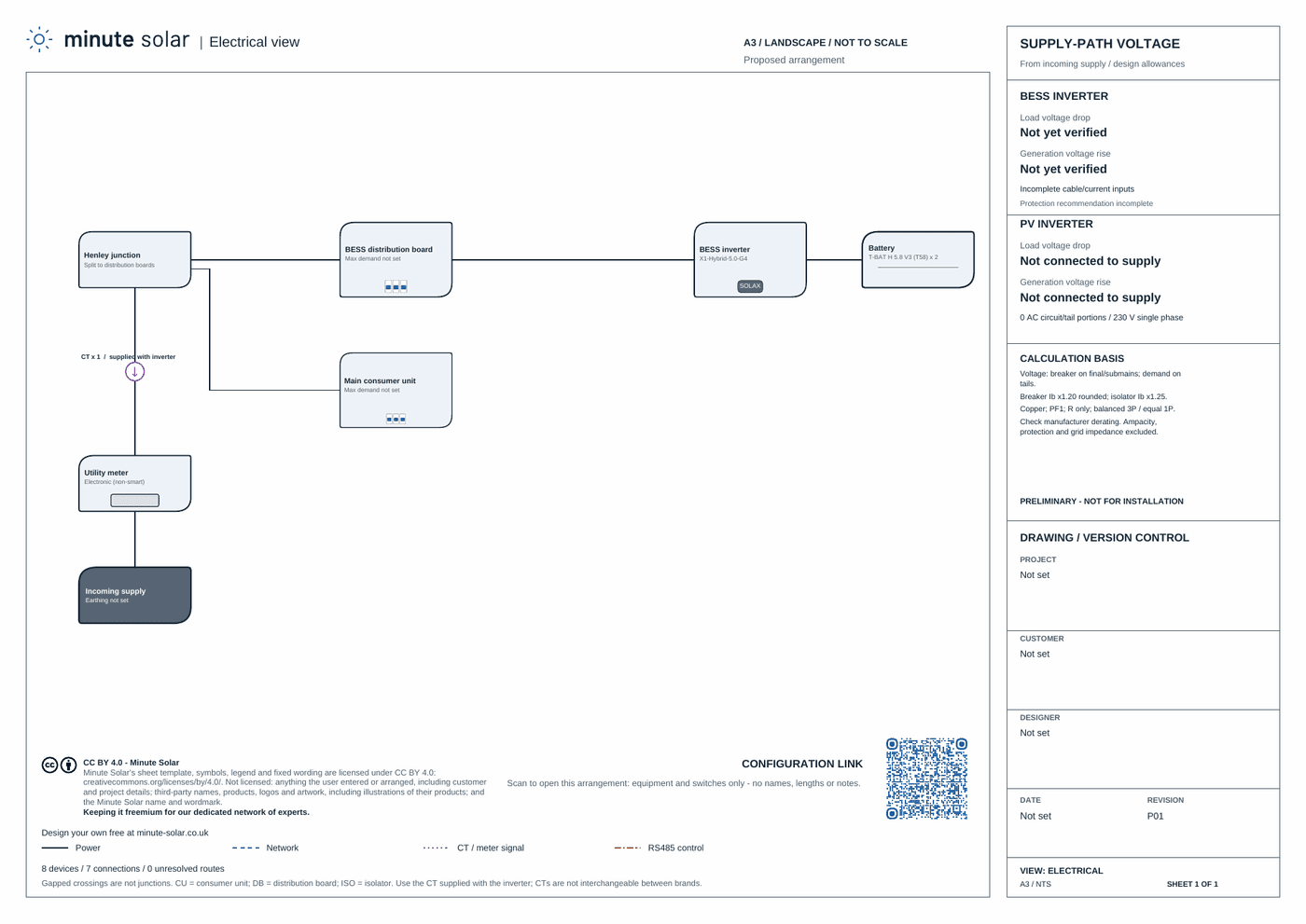

Open the schematic to download its PDF. An A3 landscape schematic PDF, Electrical view, for the same system: the drawing on the left with a legend, a CC BY 4.0 notice, the line "Design your own free at minute-solar.co.uk" and a configuration-link QR code; on the right, panels for supply-path voltage, calculation basis, "Preliminary - not for installation", and drawing and version control.
The downloadable A3 PDF of the same system, marked preliminary, with its configuration-link QR code.

Start

Start for free.

Pay only if you want your own branding on the documents.

Start designing for free
  • Free, no account: design a system, check compatibility and download the schematic PDF.
  • Free account: save your designs to projects and share them.
  • Credits: brand your documents. New accounts start with 10 credits; earned credits last 8 weeks. Credits policy
