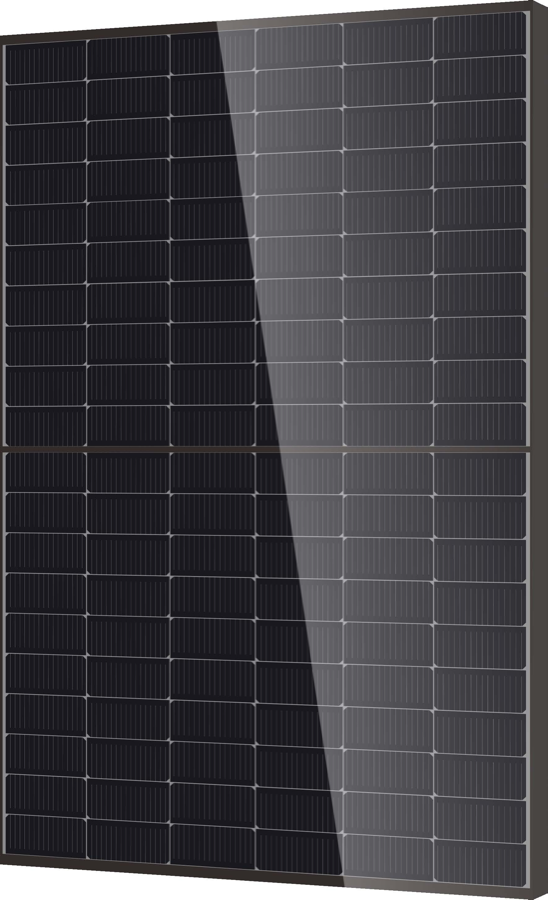

DMEGC TOPCon DM500M10RT-B60HBT (500W)

Solar panel · Made in CN

Check it in a full system design
DMEGC TOPCon DM500M10RT-B60HBT (500W)

Technical specifications

Peak power
500 Wp
Short-circuit current (Isc)
14.22 A
Open-circuit voltage (Voc)
44.7 V
Temp. coefficient of Voc
-0.25 %/°C
Series
TOPCon

Specification provenance: Unverified imported catalogue data — per-field datasheet citations are being added as documents are processed.

Dimensions & weight

Width × Height × Depth
1950 × 1134 × 30 mm
Weight
26.8 kg

Source: read from the manufacturer's datasheet.

Downloads

Related products

Other variants in the TOPCon family:

Frequently asked

What are the dimensions of the DMEGC TOPCon DM500M10RT-B60HBT (500W)?
The DMEGC TOPCon DM500M10RT-B60HBT (500W) measures 1950 mm wide × 1134 mm high × 30 mm deep. This figure is read from the manufacturer's datasheet.
How much does the DMEGC TOPCon DM500M10RT-B60HBT (500W) weigh?
The DMEGC TOPCon DM500M10RT-B60HBT (500W) weighs 26.8 kg (read from the manufacturer's datasheet).
Where is the DMEGC TOPCon DM500M10RT-B60HBT (500W) made?
Our catalogue records the country of origin for the DMEGC TOPCon DM500M10RT-B60HBT (500W) as CN (ISO 3166-1 alpha-2).
Where can I download the DMEGC TOPCon DM500M10RT-B60HBT (500W) datasheet?
The DMEGC TOPCon DM500M10RT-B60HBT (500W) datasheet is published by the manufacturer and linked from the Downloads section of this page. We link to the manufacturer's own copy so you always get the current revision.

Alternatives

Other solar panels of comparable size. We rank by the closest stored figure, not by preference — no product here is recommended over another.

Last updated 2026-07-28. Design aid only — verify against the manufacturer's documentation.
