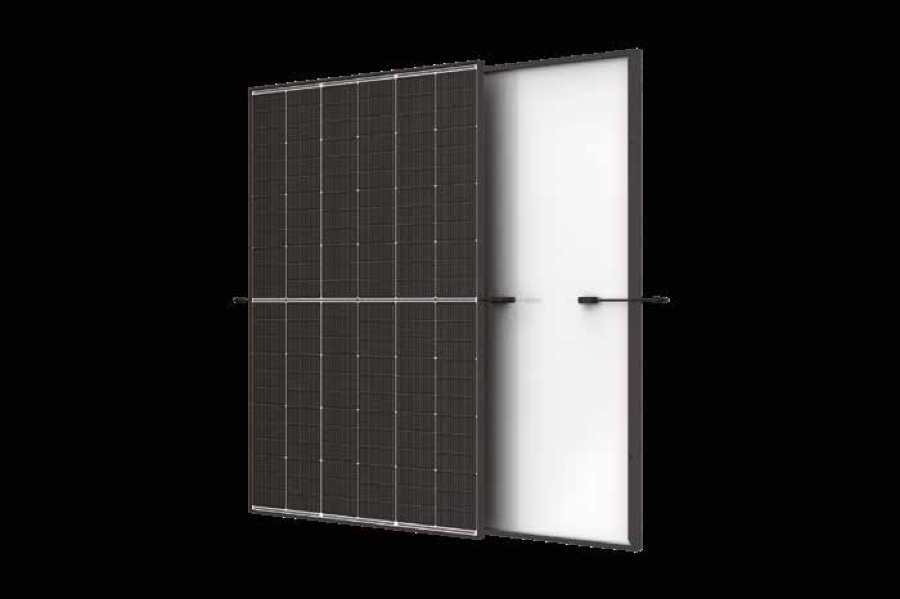

Trina Vertex S+ TSM-445-NEG9R.28 (445W)

Solar panel · Made in CN

Check it in a full system design
Trina Vertex S+ TSM-445-NEG9R.28 (445W)

Technical specifications

Peak power
445 Wp
Short-circuit current (Isc)
10.71 A
Open-circuit voltage (Voc)
52.6 V
Temp. coefficient of Voc
-0.24 %/°C
Series
Vertex S+

Specification provenance: Unverified imported catalogue data — per-field datasheet citations are being added as documents are processed.

Dimensions & weight

Width × Height × Depth
1762 × 1134 × 30 mm
Weight
21 kg

Source: read from the manufacturer's datasheet.

Downloads

Related products

Other variants in the Vertex S+ family:

Frequently asked

What are the dimensions of the Trina Vertex S+ TSM-445-NEG9R.28 (445W)?
The Trina Vertex S+ TSM-445-NEG9R.28 (445W) measures 1762 mm wide × 1134 mm high × 30 mm deep. This figure is read from the manufacturer's datasheet.
How much does the Trina Vertex S+ TSM-445-NEG9R.28 (445W) weigh?
The Trina Vertex S+ TSM-445-NEG9R.28 (445W) weighs 21 kg (read from the manufacturer's datasheet).
Where is the Trina Vertex S+ TSM-445-NEG9R.28 (445W) made?
Our catalogue records the country of origin for the Trina Vertex S+ TSM-445-NEG9R.28 (445W) as CN (ISO 3166-1 alpha-2).
Where can I download the Trina Vertex S+ TSM-445-NEG9R.28 (445W) datasheet?
The Trina Vertex S+ TSM-445-NEG9R.28 (445W) datasheet is published by the manufacturer and linked from the Downloads section of this page. We link to the manufacturer's own copy so you always get the current revision.

Alternatives

Other solar panels of comparable size. We rank by the closest stored figure, not by preference — no product here is recommended over another.

Last updated 2026-07-28. Design aid only — verify against the manufacturer's documentation.
